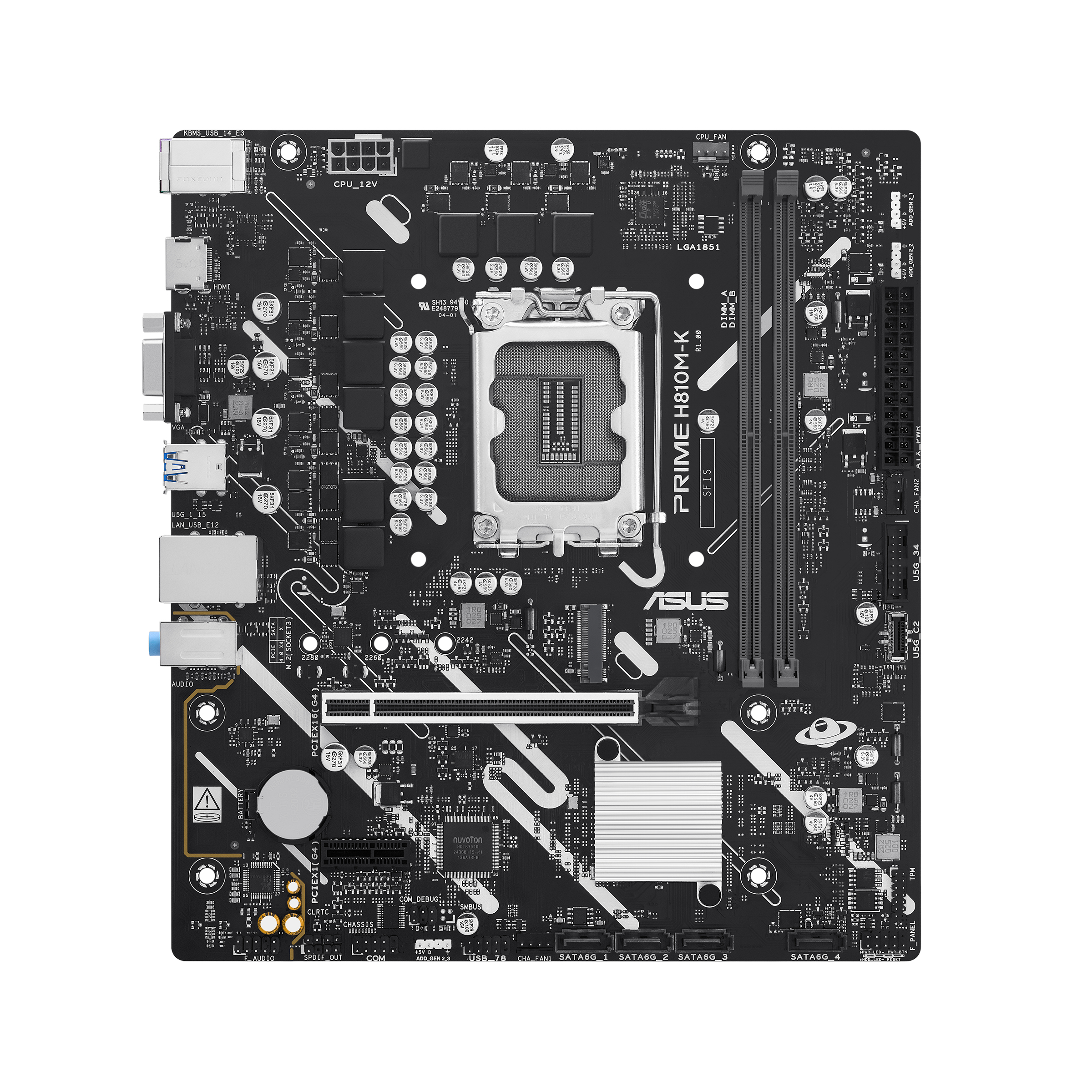

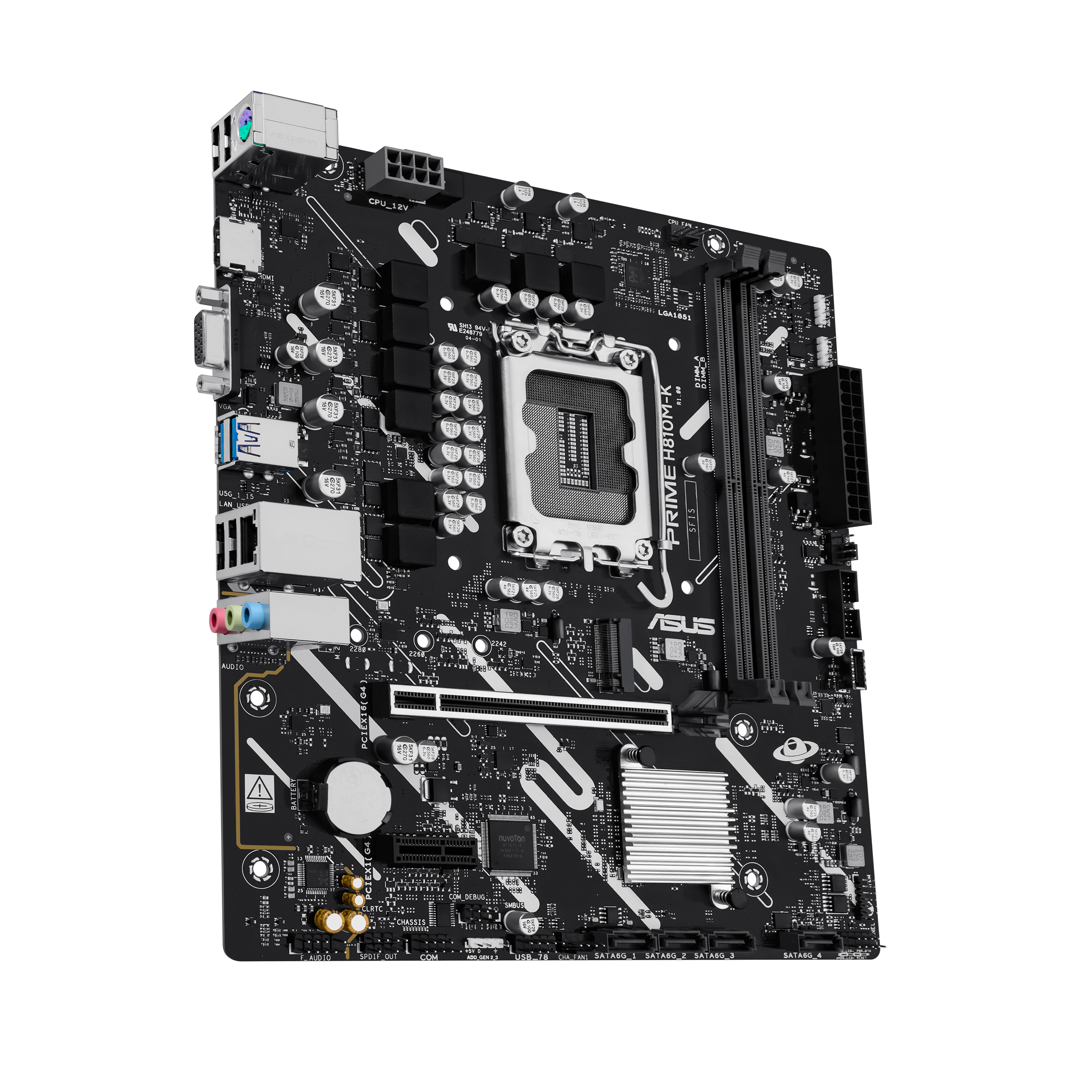

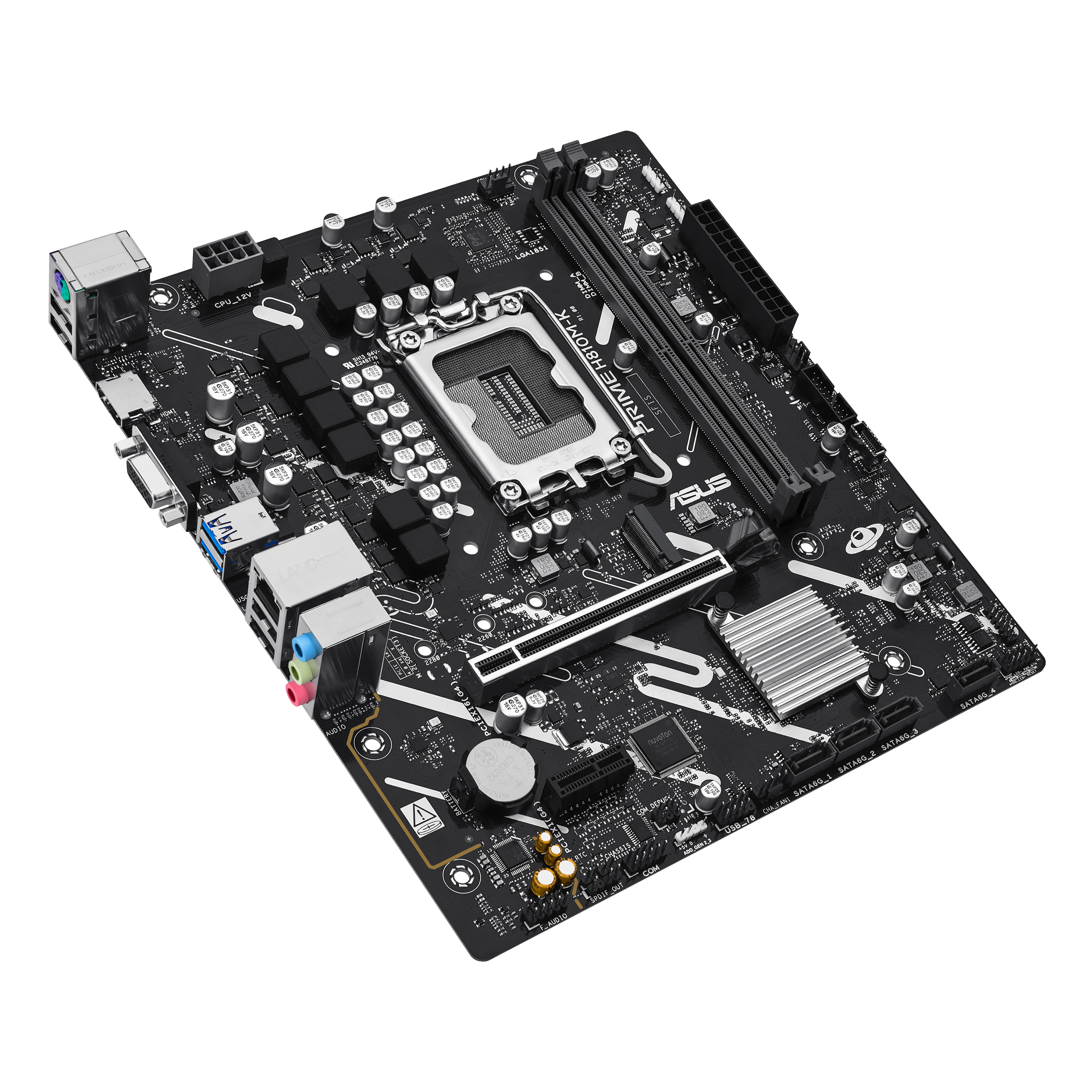

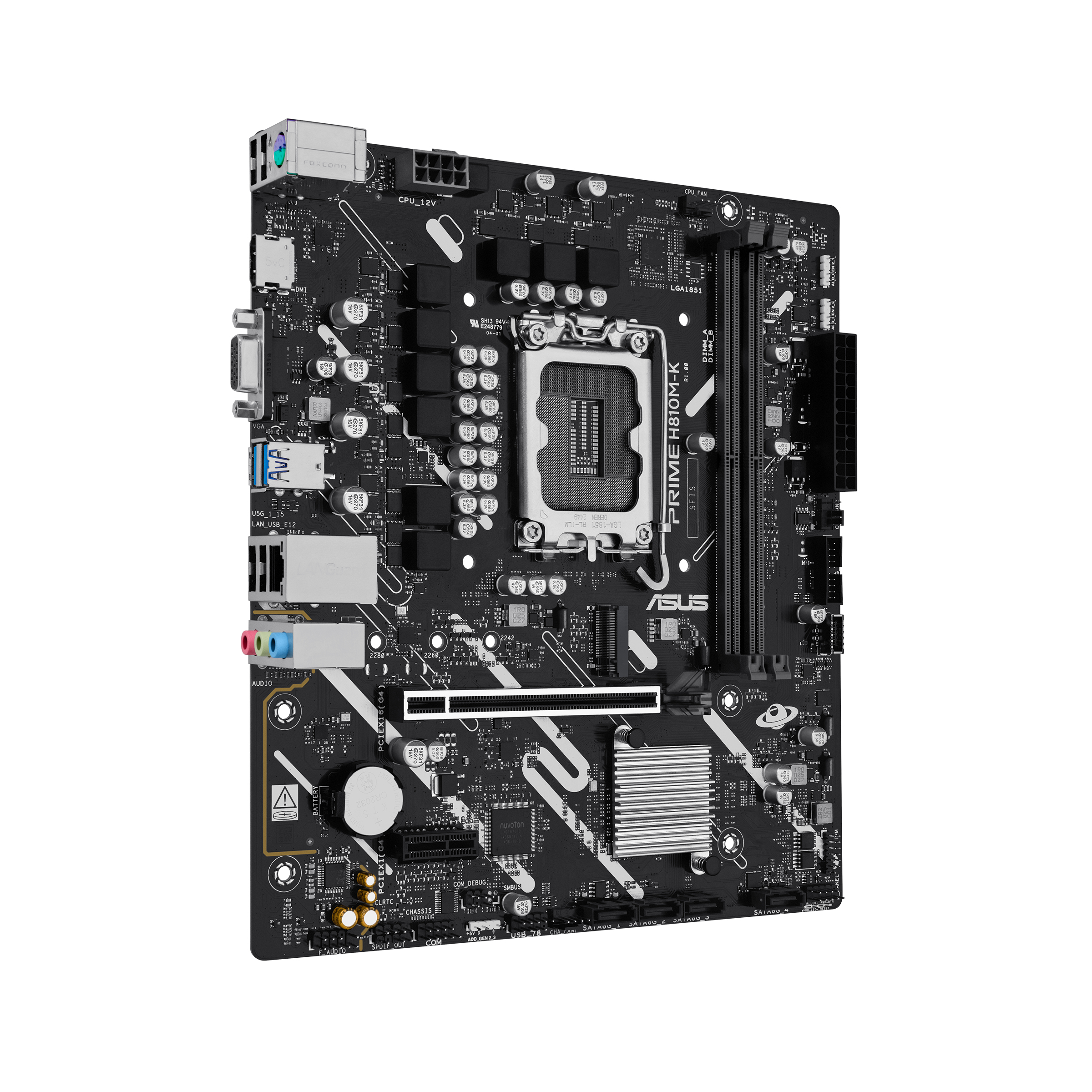

Tarjeta Madre ASUS PRIME H810M-K

Name: ASUS PRIME H810M-K Intel H810 LGA 1851 (Socket V1) micro ATX
Brand: ASUS
SKU: 90MB1N10-M0EAY0
Price: 1993.00 MXN
Availability: InStock

Categorías: Ensamble, Motherboards SKU: 90MB1N10-M0EAY0

$1,993.00 IVA Incluido

Valorado con 0 de 5

0 Reseñas

Clave SBT: MBDASS6310
UPC: 199291292291

Costo de envío: $149.00

Recíbelo entre el 27 y el 30 de octubre

189 disponibles

Añadir a cotización

Descripción

Características Destacadas

Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
PC micro ATX Intel H810 7.1 channels
DDR5-SDRAM 2 DIMM Maximum internal memory: 128 GB
HDD & SSD M.2, SATA III Number of storage drives supported: 5
BIOS type: UEFI AMI 256 Mbit
Gigabit Ethernet

PRIME H810M-K
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-K motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Performance
Digital Power Design
Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2).The PRIME H810M-K features an 6+1+1+1 phase design with discrete MOSFETs,ensuring efficient and stable power delivery for Intel® processors plus steady performance for day-to-day use.

Especificaciones Técnicas

Processor

Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Compatible processor series	Intel Core Ultra (Series 2)
Supported processor sockets	LGA 1851

Storage controllers

Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	4
Number of storage drives supported	5

Internal I/O

USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of SATA III connectors	4
S/PDIF out connector	Yes
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of CPU fan connectors	1
Number of chassis fan connectors	2
Chassis intrusion connector	Yes
EPS power connector (8-pin)	Yes
Number of COM connectors	1
TPM connector	Yes
12V power connector	Yes
RGB LED pin header	Yes
Number of RGB LED pin headers	3

Expansion slots

PCI Express x1 (Gen 4.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Number of M.2 (M) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	4.0

Weight & dimensions

Width	234 mm
Depth	211 mm

Packaging content

Cables included

SATA

Memory

Supported memory types	DDR5-SDRAM
Number of memory slots	2
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Maximum internal memory	128 GB
Unbuffered memory	Yes

Graphics

Parallel processing technology support

Not supported

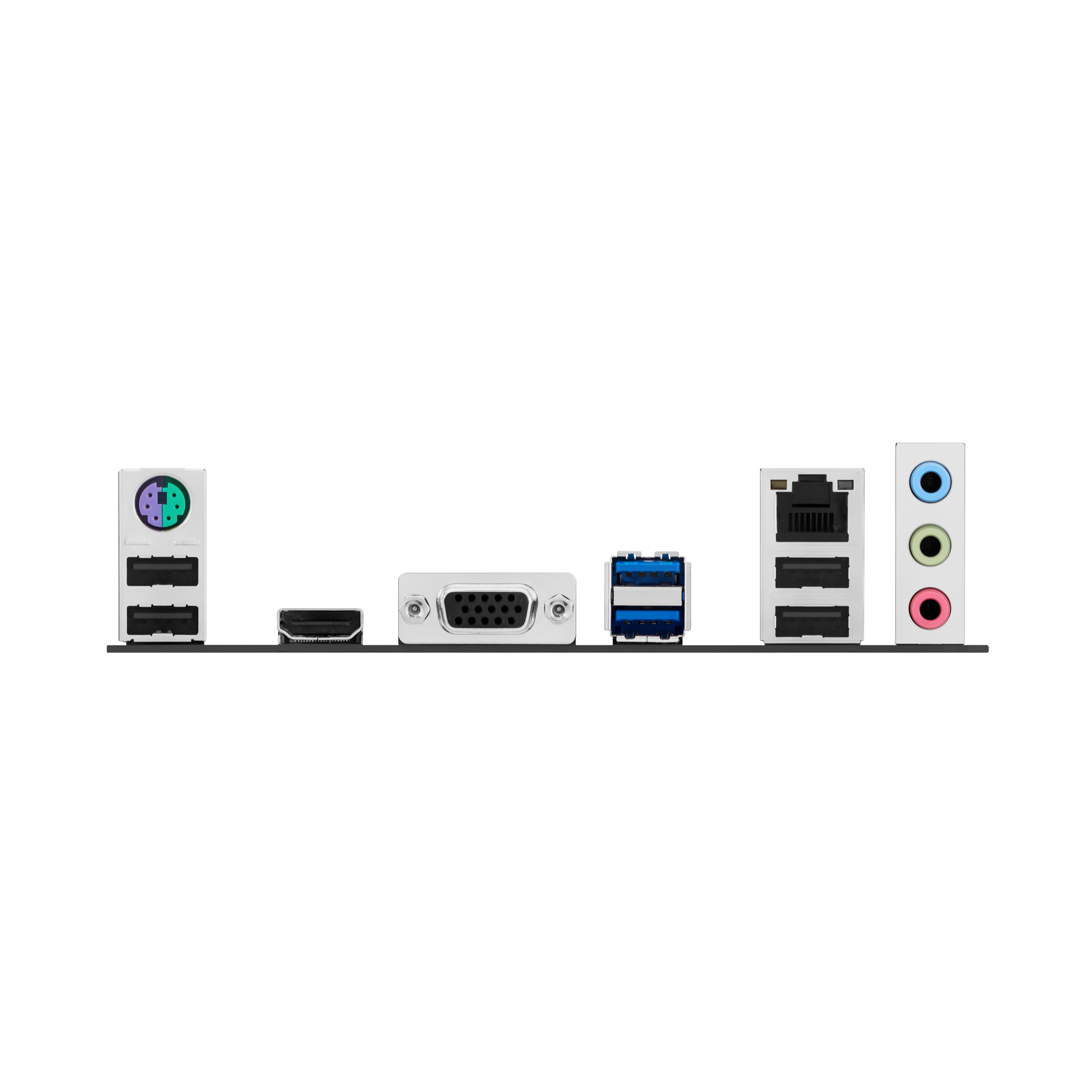

Rear panel I/O ports

USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	1
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1

Network

Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Wi-Fi	No
Top Wi-Fi standard	Not available

Features

Motherboard chipset	Intel H810
Audio output channels	7.1 channels
Component for	PC
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 10 x64, Windows 11
